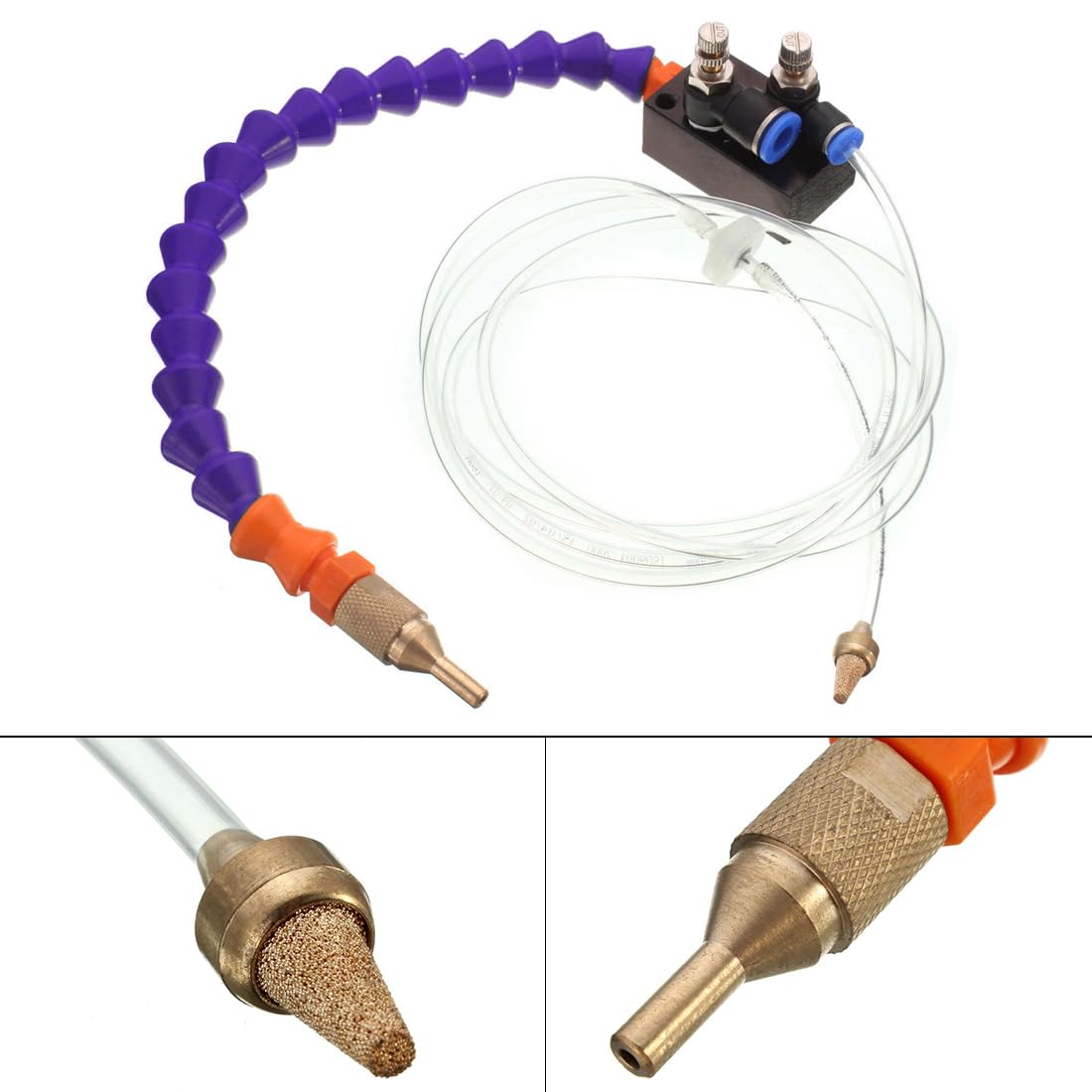

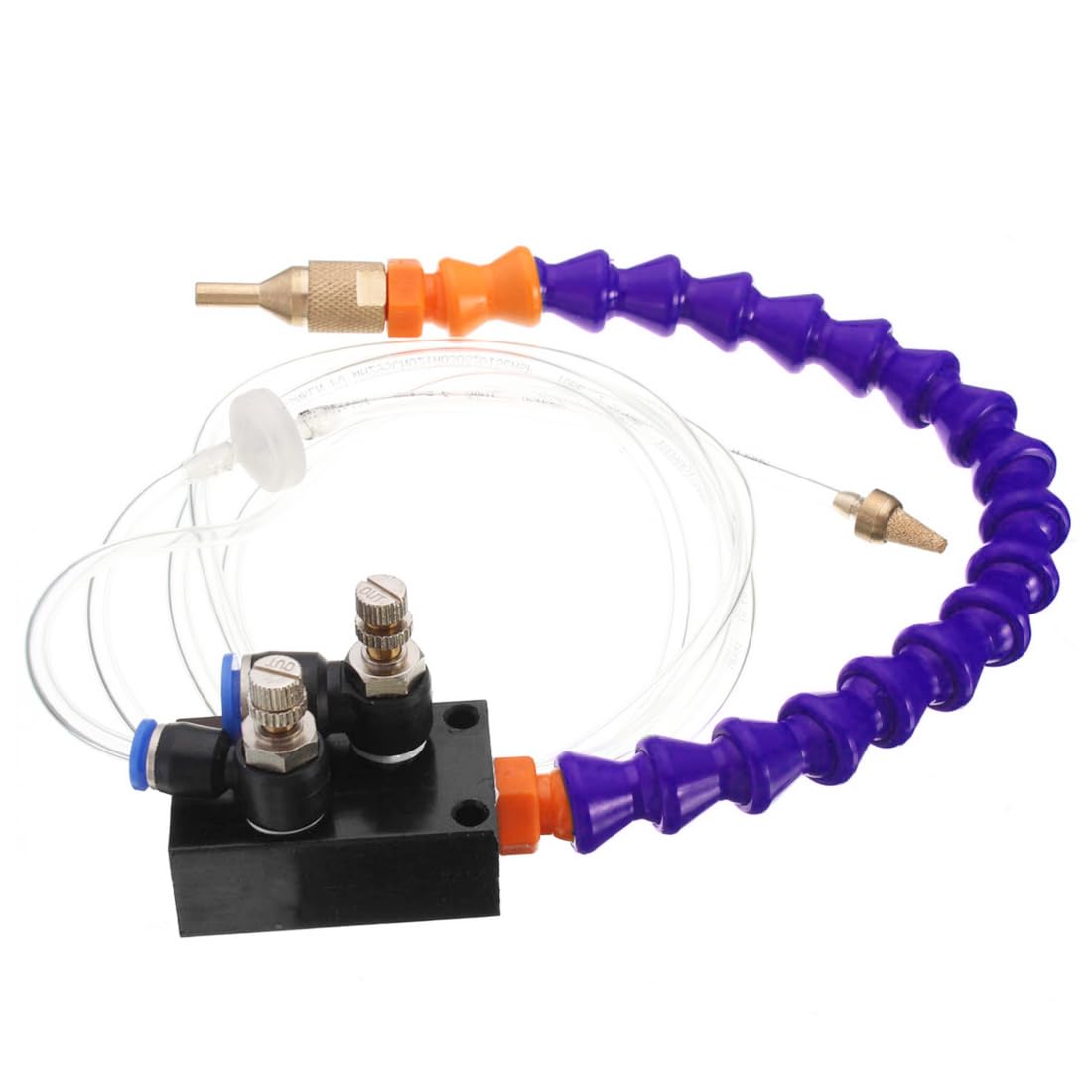

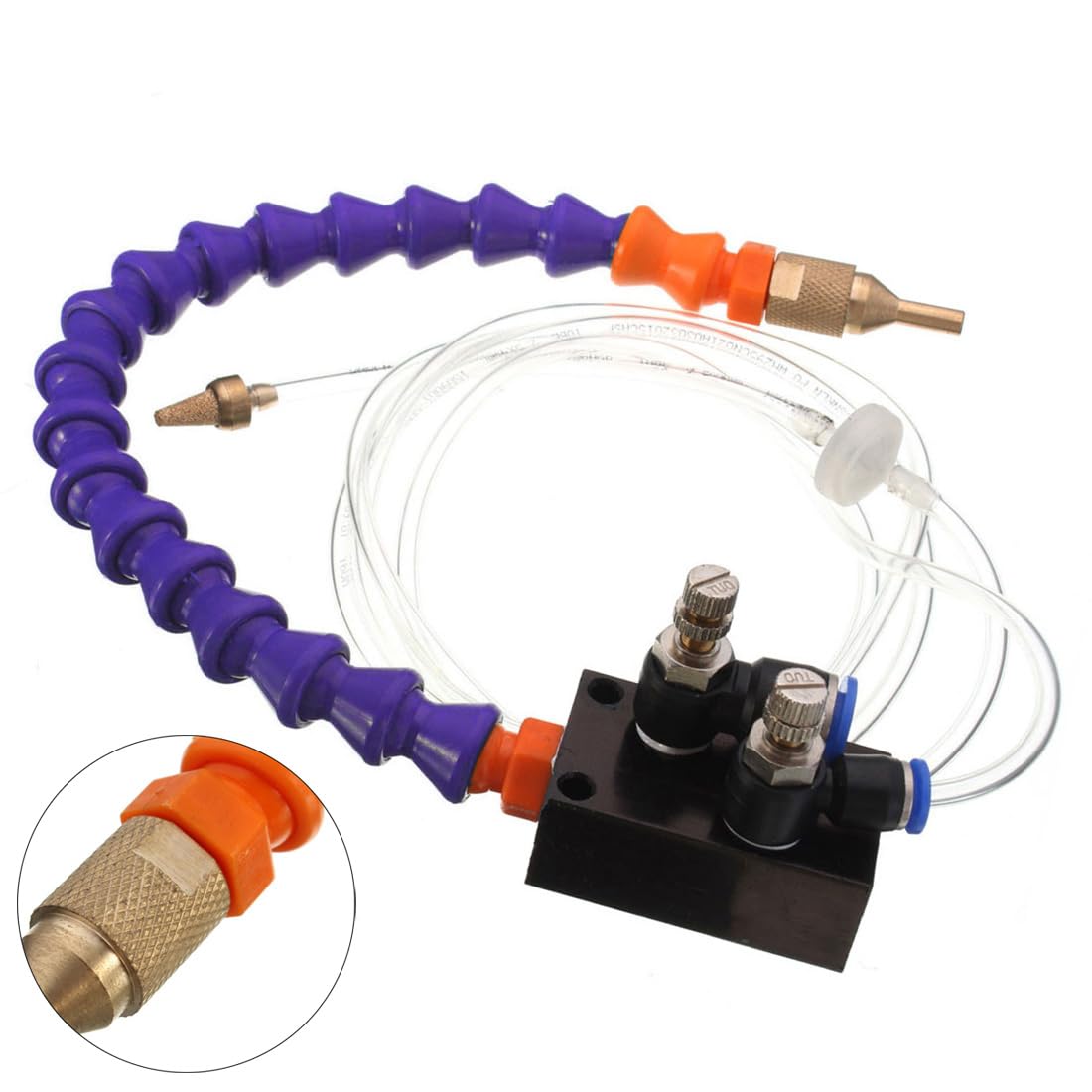

OriGlam Mist Coolant Lubrication Spray System for Metal Cutting Engraving Cooling Sprayer Machine for Air Pipe CNC Lathe Milling Drill

Brand: OriGlam

Features:

• √ Great Value - Processing the coolant can save more than 80%, the cooling effect is no less than the conventional water-cooled.
• √ Working Safer - Gas processing chips are blown away, working safer; A lot of water problem solving tools, easier to clean up.
• √ Save Time - Not only increases the machining cutting speed, save time and reduce processing costs and tool wear.

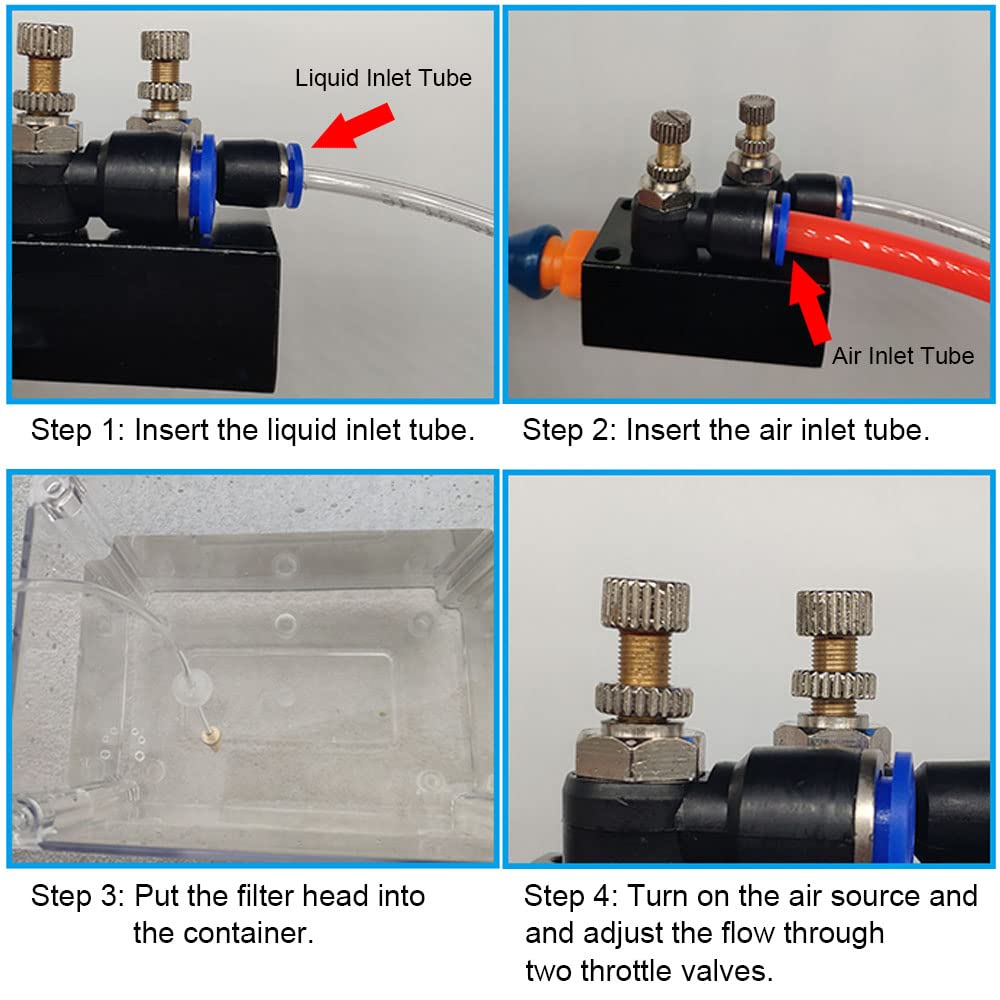

• √ Easy To Use - Air flow and spray mist volume adjustable design, easier to use.
• √ Widely Used - In the liquid without pressure output required to ensure that the air pressure in the range 5-7KGF / CM2.

model number: 130103020Q

Part Number: 130103020Q

Details: Features:

Cooling Pipe Length: 300 mm
PU Tube Length: 1.5 m
Oil Outlet Port Size: 4 mm

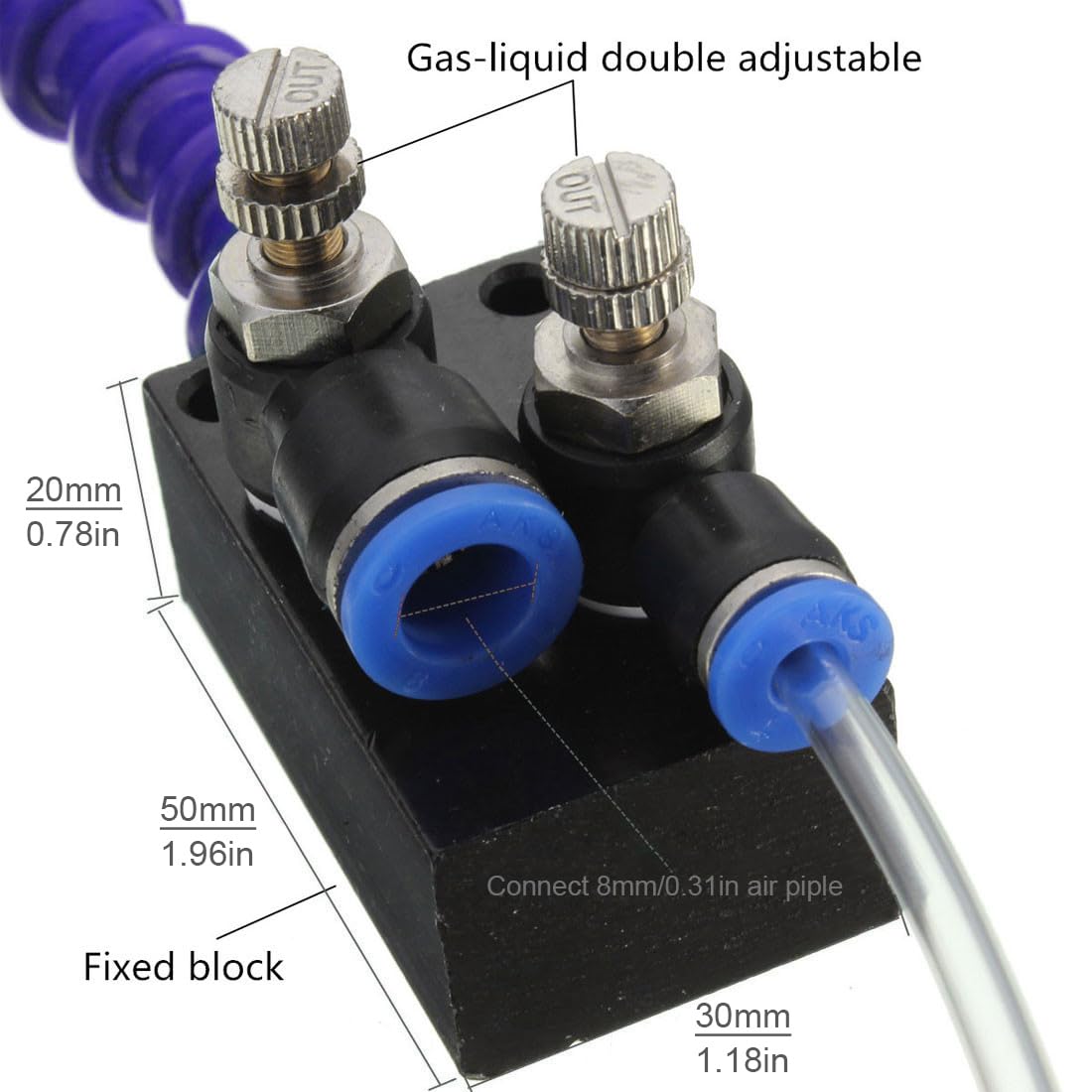

Air Inlet Port Size: 8 mm
Type: Coupling
Check Valve: Yes

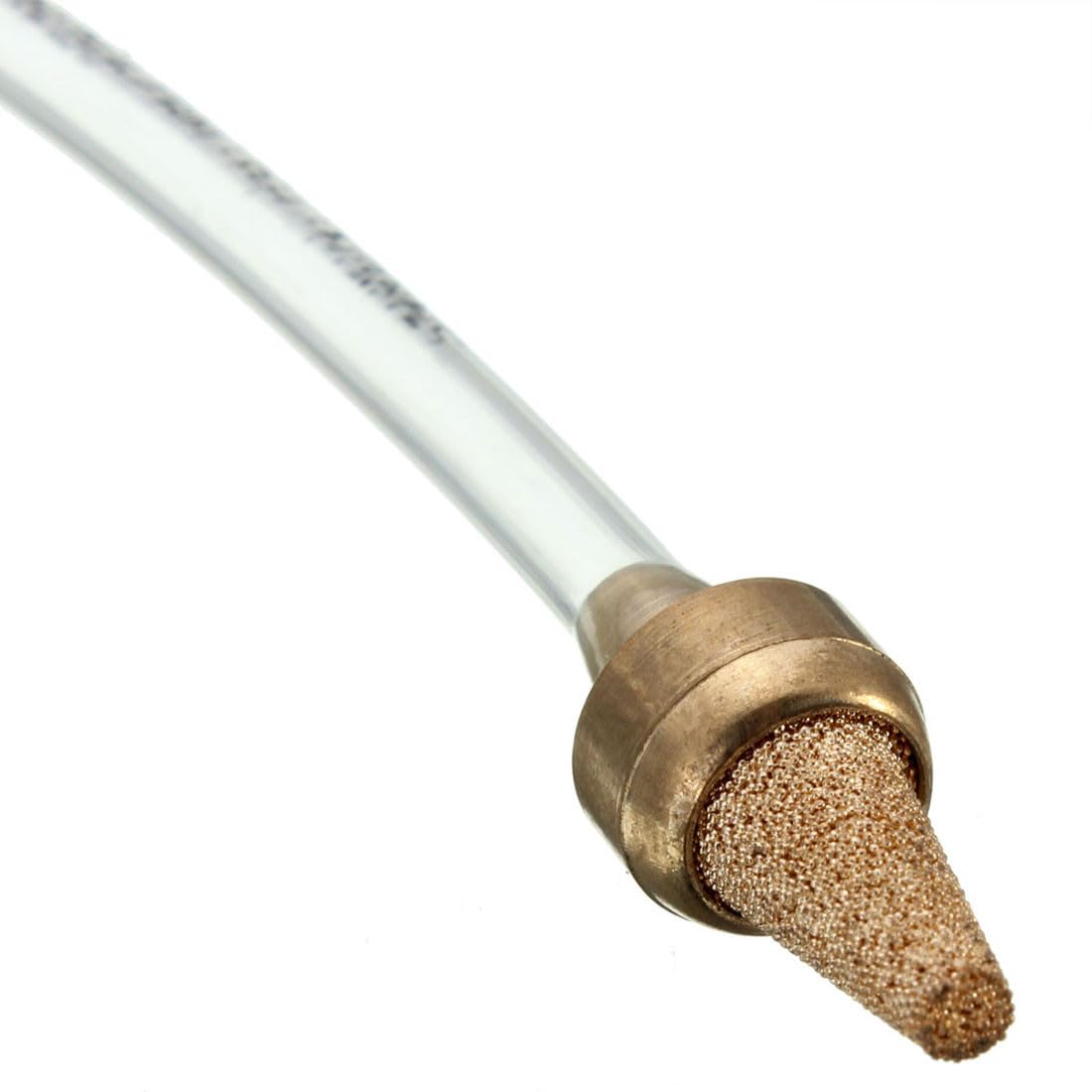

Filter: Yes

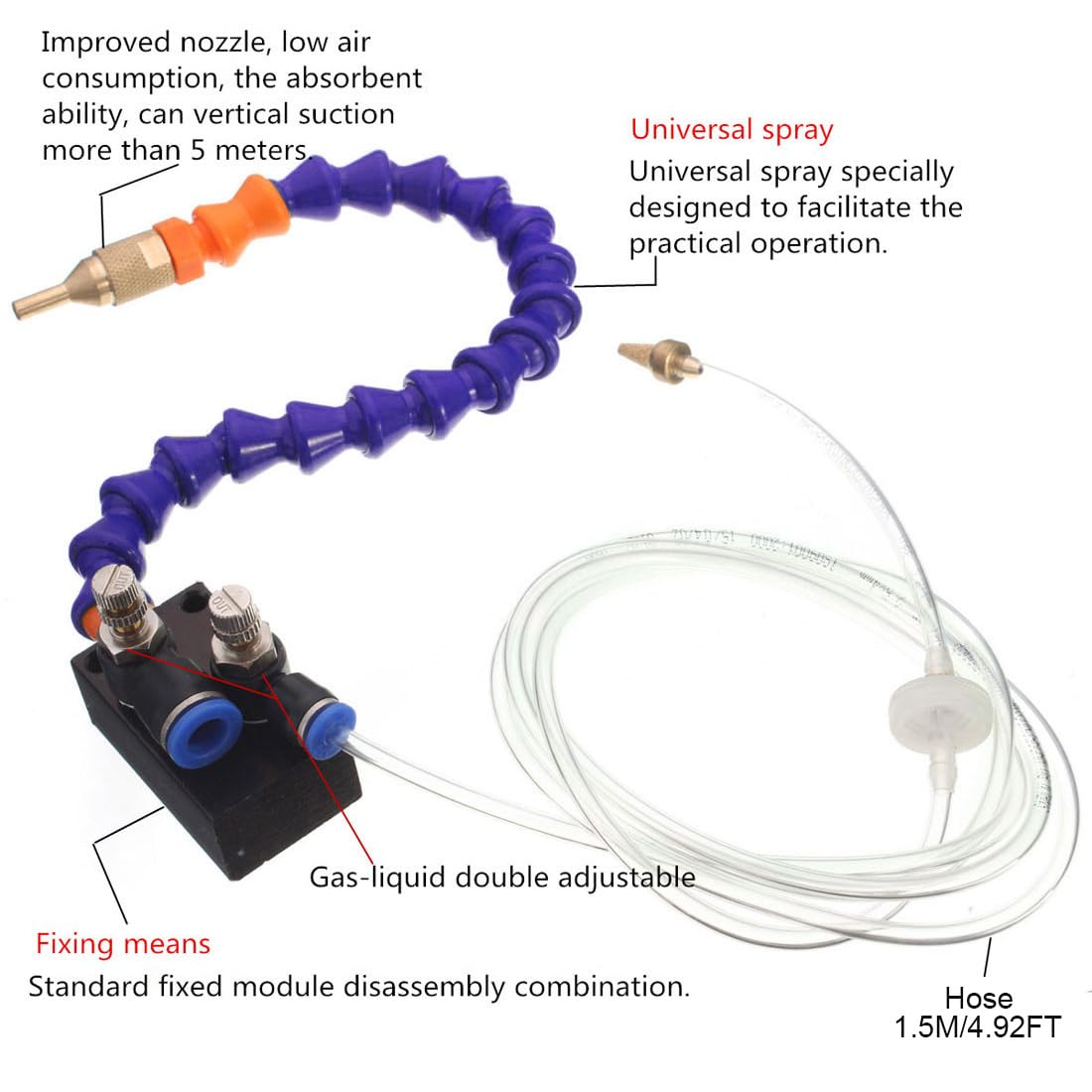

Product Name: 320mm Fully Sealed Mist Coolant Lubrication Spray System
Features:
- Fully sealed structure design. The air is directly sealed inside the pipe, and will not leak at the contact surface when bent at will, real realize no air leakage.
- No air leakage, stable air suction. Ensure that the machine will not restart frequently due to high gas consumption, save energy and long service life.
- Easy to use. Air flow and spray mist volume adjustable design, easier to use on different processing conditions.
- Can be used to blow away metal fragments, making your work safer; A lot of water problem solving tools, easier to clean up.
- Can be installed on CNC lathes and milling machines to improve processing capacity and cutting speed, Save time, reduce machining cost and tool wear.
- In the liquid without pressure output required to ensure that the air pressure in the range 5-7KGF / CM2 (atomization and gas, associated gas pressure).
- Application to: metal cutting engraving, cooling stone metal ceramic tile engraving machine, CNC lathe milling drill machine, 8mm air pipe.

Common Product Problems：
- Question 1: I find it produces a mist, not a fine spray.
Cause: Too much atomization.
Solution: Turn down your breath, you need to give some air pressure to the liquid at the same time as the gas supply.

- Question 2: Coolant doesn't seem to be sprayed as much.
Cause: Need to pressurize the fluid.
Solution: Turn the gas down a bit, and give the liquid a certain amount of power. Maybe you need a pressure barrel.

- Question 3: The valve is not fully closed. There is some air and some liquid making the mess.
Cause: Water tank to prevent too high.
Solution: The liquid is left in the pipeline, so that it can start faster next time, otherwise it will take a while. You can lower the tank a little bit lower than the sprinkler.

Note:
- Be sure to use filtered clean air source and clean liquid spray to avoid clogging.
- Please predict the location of the sprayer hole first, so that the nozzle is too far away from the cutter.

Material: Aluminum + Copper +Plastic
Air Pressuer: 0.3-1.0 MPa
Liquid Viscosity: 0-88 cst

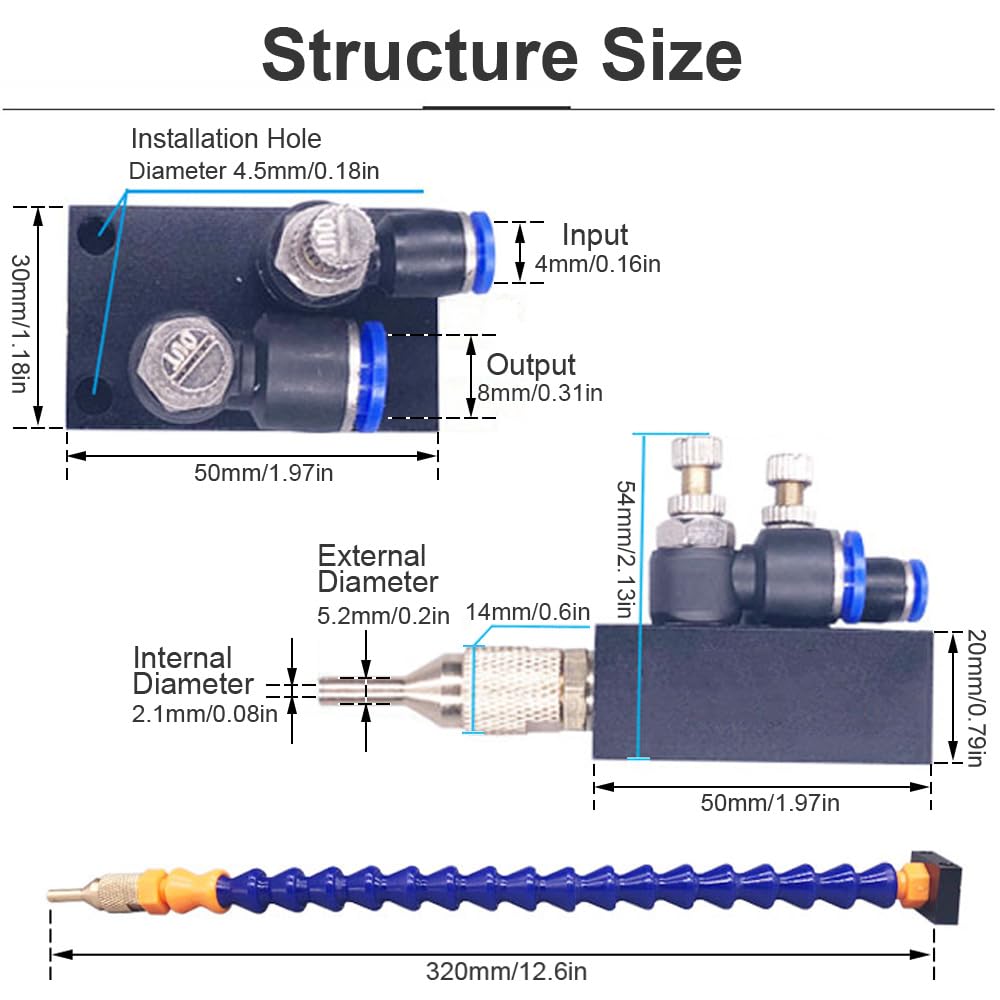

Input Tube: 150 cm
Output Tube: 30 cm

Product Weight : 180 G / 6.35 Ounces
Product Dimensions (L*W*H) : 180*135*20 MM / 7.09*5.31*0.79 Inches

Package Include:
1 x Mist Coolant Spray System

EAN: 4895192450650

Package Dimensions: 6.9 x 5.4 x 1.2 inches
